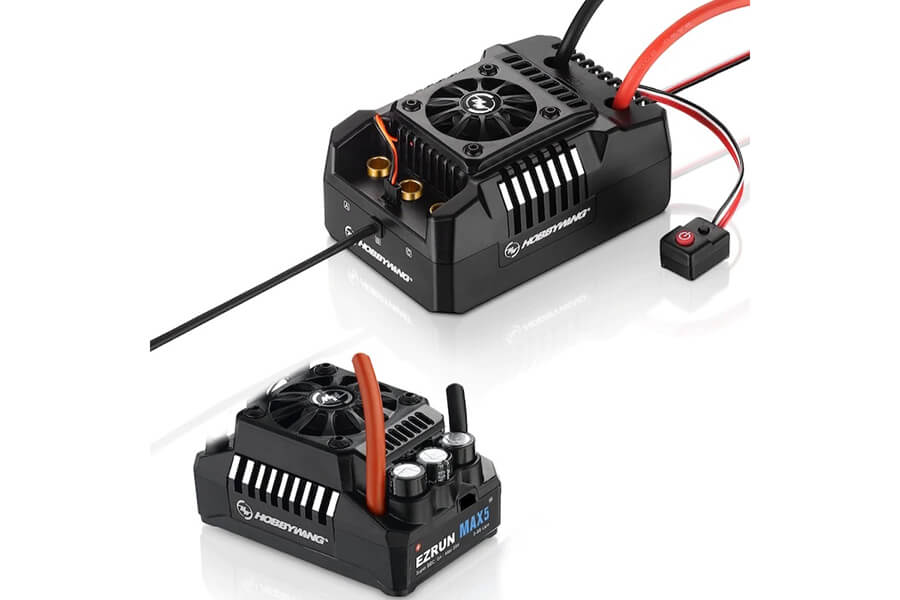

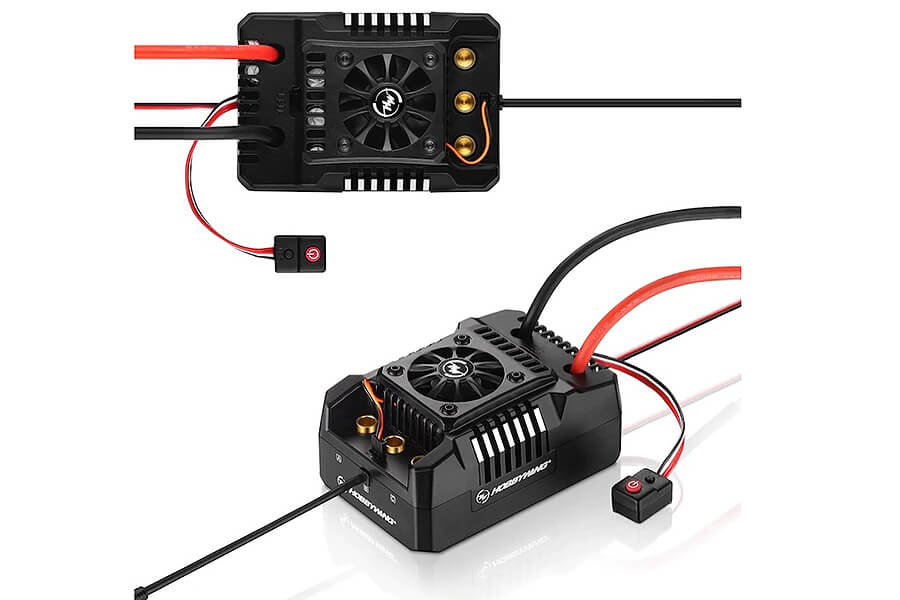

  • Hobbywing Ezrun Max4 Hv Speed Controller HW30104002

    Available for collection and delivery within 3-5 days

    Shipping & Delivery

    On this item shipping is usually 3-5 business days from the date of order confirmation, times may vary depending on product and delivery / collection location.

    SKU: HW30104002
    Vendor: Hobbywing

    Features

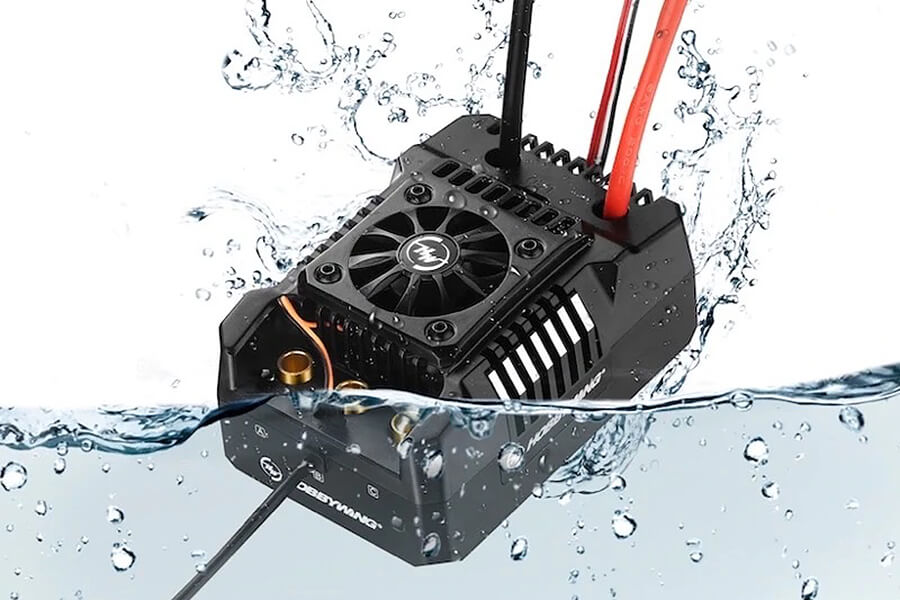

    • The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
    • Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
    • Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
      caused by the automatic closure of mechanical switches and other issues.
    • Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
    • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
    • Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
    • Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.

    Specifications

    Scale Vehicles: 1/4 - 1/5th
    Cont./Peak Current: 300A/2000A
    Motor Mode: Sensored and sensorless brushless motor
    Input: 6-12S Lipo
    Motor Limit: With 12S Lipo: KV≤600 70125 size motor
    BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
    Programming Port: Share with Fab interface
    Switch Mode: Electronic Switch
    Capacitor protection: Yes
    Waterproof: Yes
    Size (L.W.H) mm: 125 x 85 x 61.7 mm
    Weight (g): 775.4g
