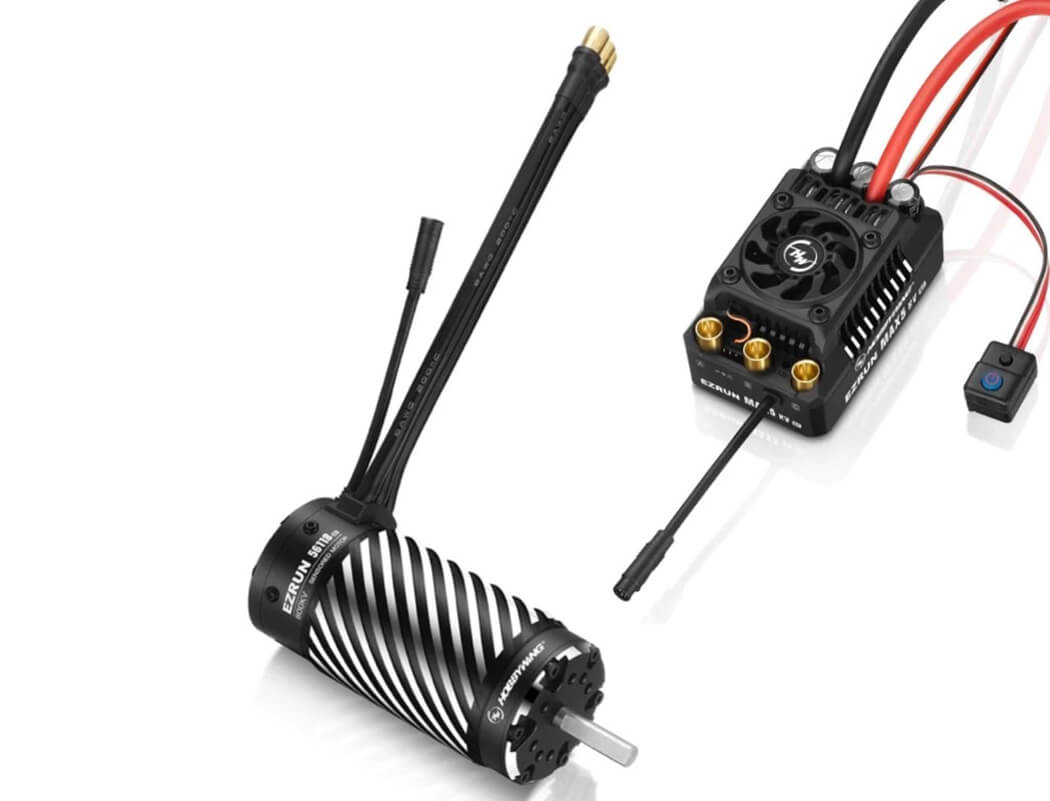

  • Hobbywing Combo Ezrun Max5 Hv G2 Esc 56118Sd 800Kv G2 Motor HW38010602

    Available for collection and delivery within 3-5 days

    Shipping & Delivery

    On this item shipping is usually 3-5 business days from the date of order confirmation, times may vary depending on product and delivery / collection location.

    SKU: HW38010602
    Vendor: Hobbywing


    • Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
    • Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
    • Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V-8.4V adjustable, easy to drive various powerful and high-voltage steering servo.
    • Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
    • It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use

    Combo Specifications

    KV: 800KV
    Lipo's: 8-12S
    No-load Current (A): 6.9A
    Diameter / Length: φ=56mm (2.20") L=119.2mm (4.69")
    Shaft Diameter / Length: φ=8mm (0.31") L=30mm (1.18")
    Bearing size (mm): Front: D22*D8*T7 Rear: D19*D8*T6
    Pole: 4
    Weight: 1277g
    Applications: 1/5 Buggy, Truck

    ESC Specifications

    Cont. / Peak Current: 250A / 1600A
    Motor Type: Sensored / Sensorless Brushless Motor
    Application: 1/5th Buggy, Truck
    Motor Limit (Note*): With 8S LiPo: KV < 1200 With 12S Lipo: KV <800 56118 size motor
    LiPo Cells: 6-12S LiPo
    BEC Output: 6V/7.4V8.4V adjustable, continous current 8A (switch-mode)
    Cooling Fan: A stable 6V or 7.4V or 8.4V from the built-in BEC
    Size / Weight: 94.5(L) x 59.4(W) x 50.9(H)mm / 428.5g (Included input wires)
    Programming Port: Independent programming port

    Please Note: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.
