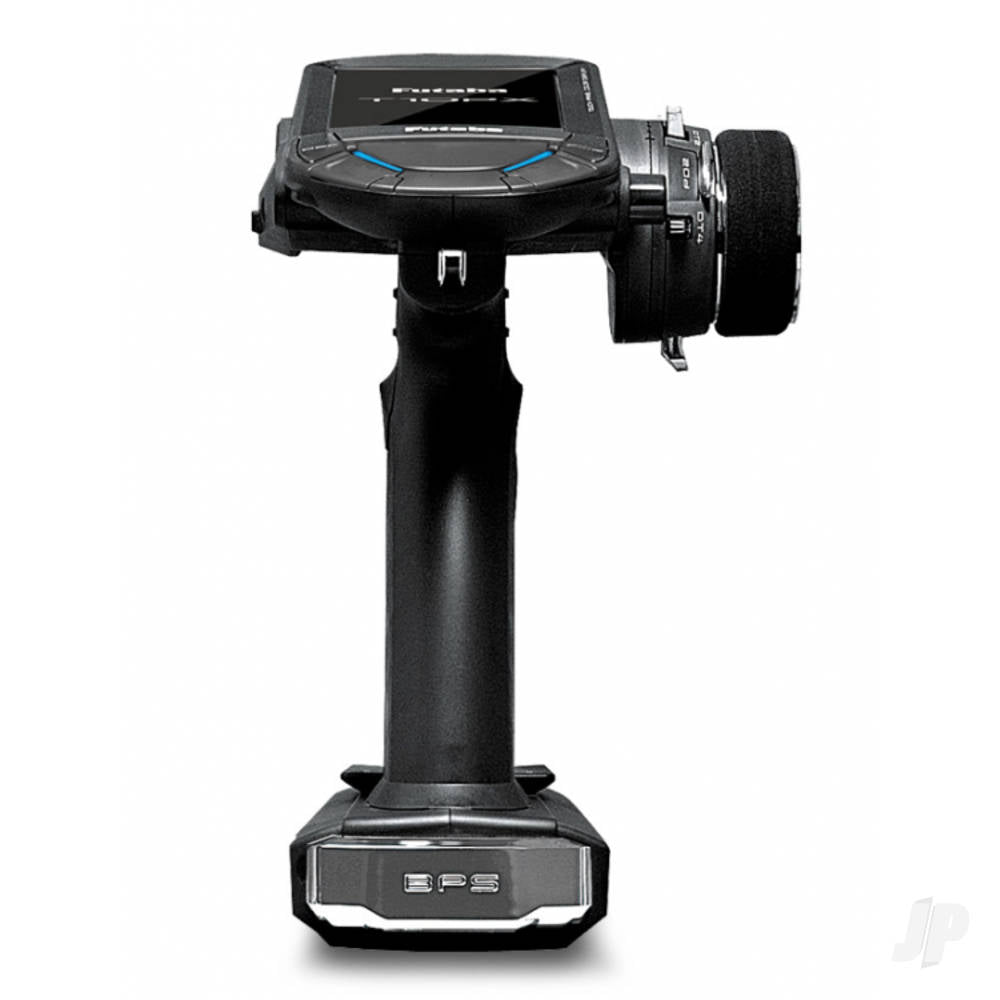

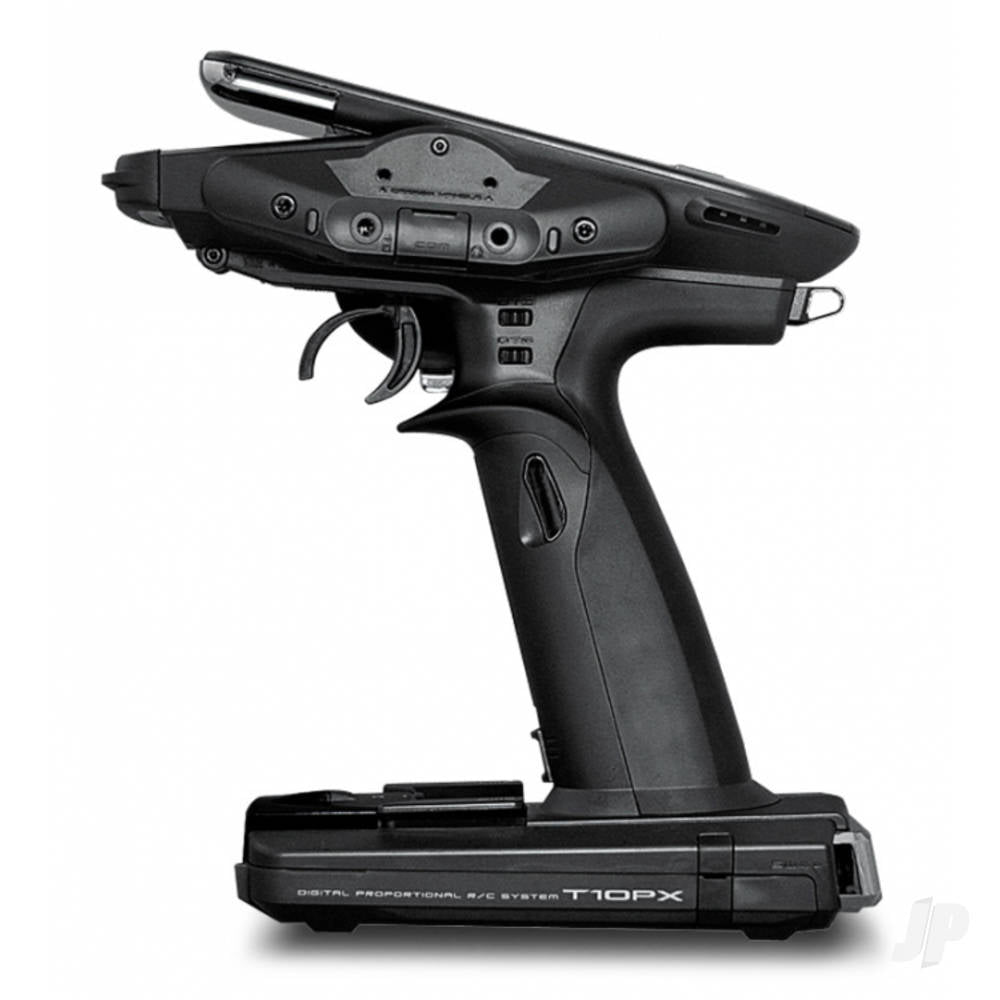

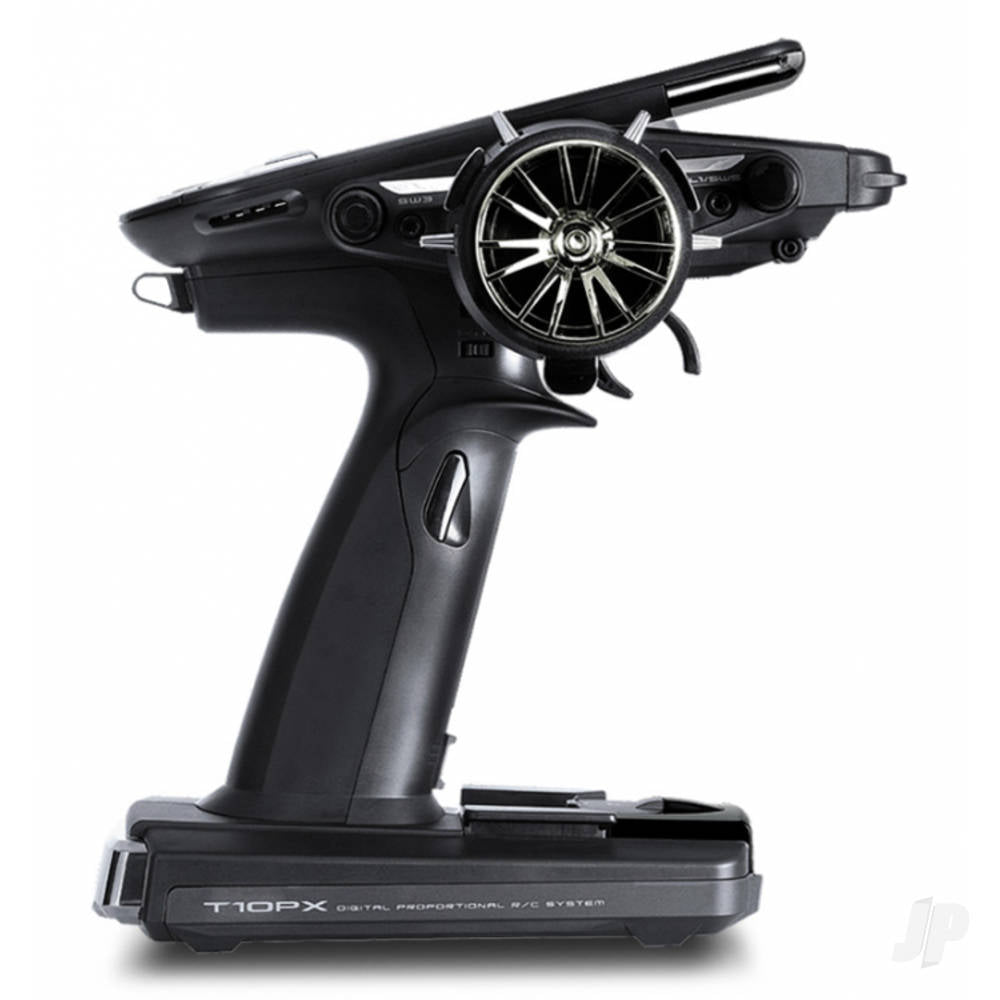

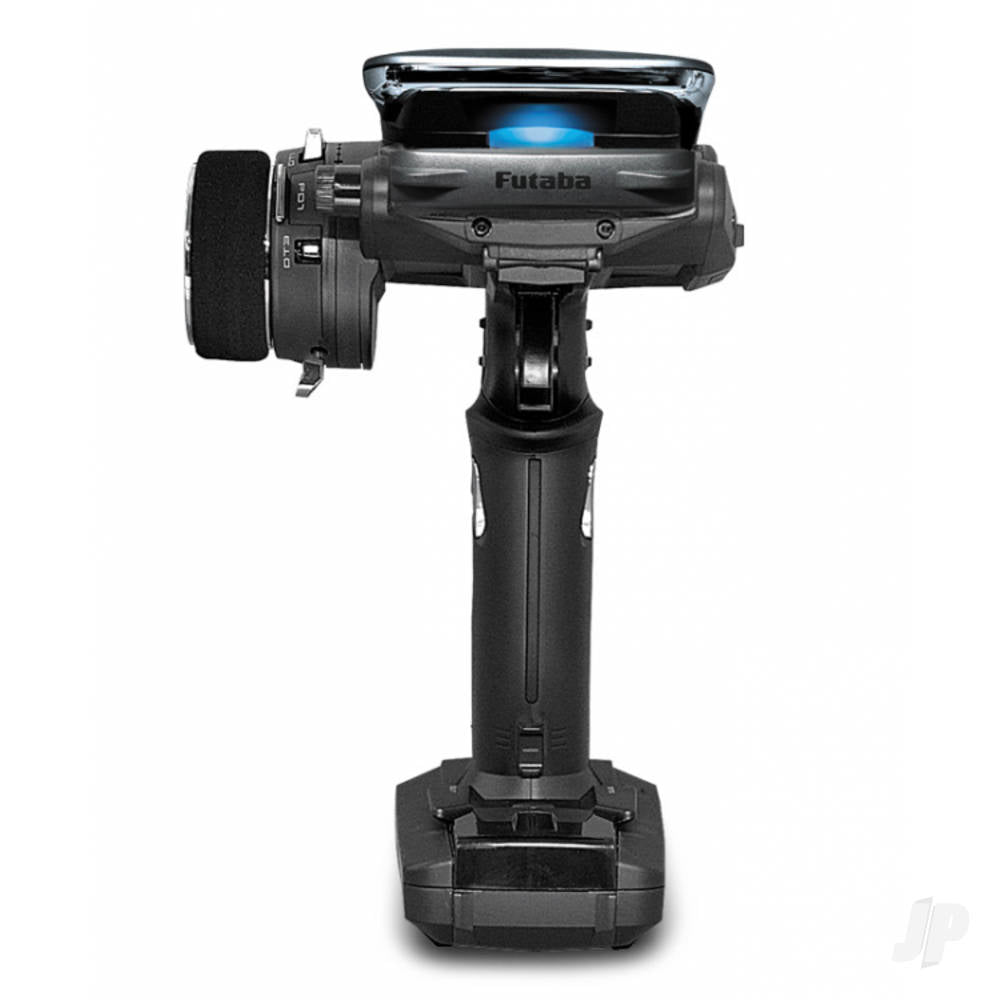

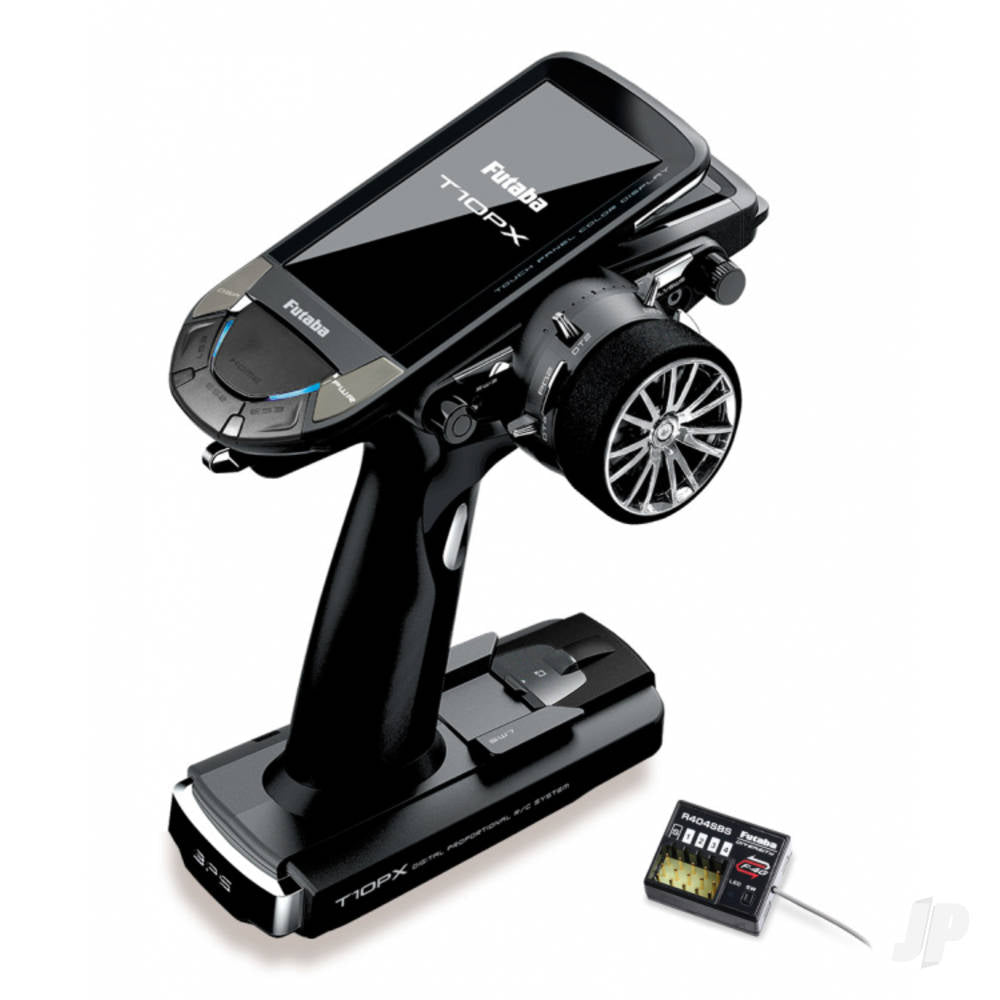

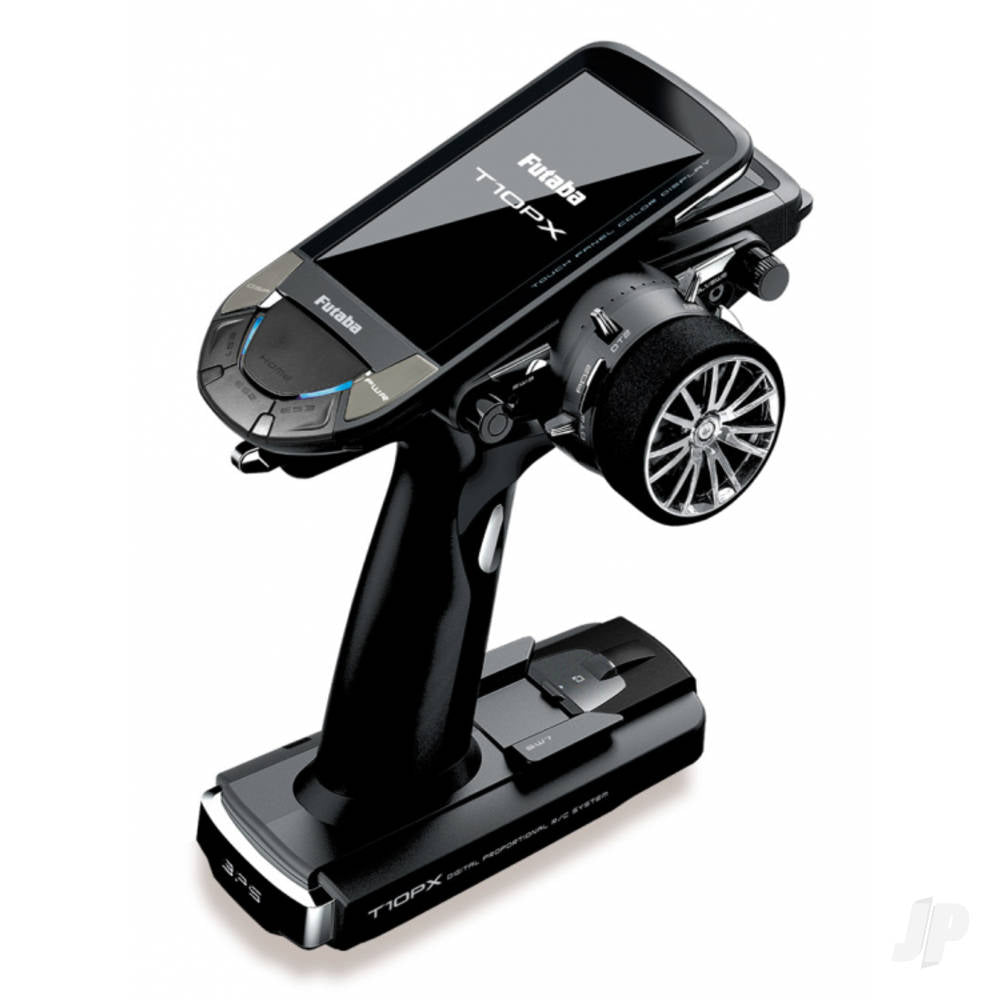

The T10PX 10-Channel Surface Radio with R404SBSE Rx from Futaba.
The Futaba T10PX transmitter builds on the legacy of the highly acclaimed 7PX, setting a new benchmark in RC control for competitive racers and scale enthusiasts. Engineered with the state-of-the-art F-4G response system, the T10PX provides a lightning-fast, ultra-responsive connection between you and your model. With support for up to 10 channels, real-time telemetry, and an extensive range of customisable features, this transmitter is Futaba’s most advanced RC radio system yet.
Key Features: Unmatched Responsiveness and Personalisation
• F-4G High-Speed Response System: The T10PX utilises the powerful F-4G protocol, offering a high-speed response that feels “locked-in,” providing the confidence and precision that top drivers demand.
• Real-Time Telemetry: Unlike previous models, the T10PX enables telemetry data communication, delivering live feedback to keep you informed of essential performance metrics.
• Custom “Feeling” Function: Adjust the T10PX’s response characteristics to suit your unique driving style, enhancing control and comfort for every race.
Ergonomic and User-Friendly Design
• Lightweight Build for Extended Use: As the lightest in its class, the T10PX’s balanced, ergonomic design reduces hand fatigue, allowing for longer, more comfortable sessions.
• Full-Colour LCD Display: Equipped with a high-resolution, wide-viewing angle screen, the T10PX’s LCD provides clear, vibrant data, settings, and a user-friendly icon-based menu system.
• Multi-Position Grip and Modular Controls: The adjustable rubber grip, paddle shift lever, and multi-position switch system are designed for left- and right-handed drivers, adding flexibility to fit your preferences.
Advanced Customisation and Versatility
• 10-Channel Compatibility: With support for up to 10 channels, the T10PX handles complex models, from competitive RC racers to advanced scale models.
• Game Controller Mode: Use the USB port to connect the T10PX to simulators or gaming devices, enhancing training and practice opportunities.
• Modular Switches and Controls: The throttle and steering spring replacement mechanism allows for customised control setups, ideal for specialised driving requirements.
Comprehensive Menus for Enhanced Functionality
With the T10PX’s intuitive menu system, users have access to a wide range of settings, including:
• System Menu: Personalise display, battery, voice, and LED settings, along with receiver and servo updates.
• Model Menu: Easily manage model selections with space for 40 model memories, expandable via SD card.
• Setup Menu: Adjust key parameters such as fail-safe, sub trim, and channel limitations, plus unique options like idle-up.
• Racing and Mixing Menus: Configure advanced functions like traction control, ABS, gyro mixing, and programmable steering or brake setups.
• Telemetry and Accessory Menus: Track telemetry data, set timers, and adjust S.BUS servos or gear ratios with ease.
Specifications
• Display: Full-colour TFT touch screen with an intuitive icon-based menu system
• Response System: Compatible with Futaba F-4G, T-FHSS SR, T-FHSS, S-FHSS, Mini-Z
• Channels: 10-channel capability
• Model Memory: 40 slots, expandable via SD card
• Modulation: Futaba F-4G fast-response protocol
• Receiver: Futaba R404SBS included for superior, high-speed performance
FEATURES
-
Full colour touch screen LCD
T10PX has an HVGA 4.3 inch, full-colour, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
-
F-4G system and telemetry
Equipped with an F-4G system that enables telemetry with faster response than the T-FHSS SR system.
-
10 channels
Up to 10 channels can be operated by using the S.BUS2 system together.
-
T-FHSS MINIZ system
By setting to the MINIZ system in the receiver setting menu, you can Kyosho Mini - Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase seperately.
-
Update-able software
Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.
-
Model memory for 40 models
Model names can use up to 15 letters, number and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
-
Paddle switch + bottom switch + 3 position switch
A paddle switch near the wheel, a 3-position switch on the grip, and a bottom switch on the bottom are equipped to support multiple channels and functions.
-
LiPo battery can be used
The optional LT2F2000B LiPo battery can be used as the transmitter power supply. The running time is extended.
-
Brake mixing for large cars
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
-
Steering mixing
Smooth cornering is possible by the independent left and right steering servo setting.
-
4WS mixing for crawlers and other 4WS type
This function can be used with crawlers and other 4-wheel steering type vehicles.
-
Dual ESCs mixing for crawlers
ESC at the front and rear are controlled independently.
-
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10PX.
-
Tank mixing
This function is intended for vehicles such as tanks.
-
CPS mixing
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
-
S.BUS servo
This is a special function that allows setting of the parameters of our S.BUS servo whose settings are changed by using PC Link software.
-
MC-Link
This is a dedicated function which allows setting of the contents of the Link software which makes possible Futaba speed controller (ESC), MC960CR, MC950CR,MC850C, MC851C, MC602C, MC402CR, etc. variable frequency and other data changes by PC at the T10PX.
-
Throttle speed
Sudden trigger operation on a slippery road surface will only cause the tyres to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.
-
Non-telemetry LED
When the telemetry function is OFF to conï¬rm that the telemetry function is not operating.
-
Dial select function
This function assigns functions to dials (digital trim, grip dial, knob). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.
-
Switch select function
This function assigns functions to 10 switches. The operating direction can also be set.
-
Wheel & Trigger position can be changed
The wheel position can be offset by using an accessory APA wheel position offset adapter.
The wheel angle can also be adjusted. The position of the throttle trigger can be moved forward and backward.
-
Rubber Grip
It is possible to convert to a narrow grip type by ex-changing the rubber grip.
-
Trim/dial lock functions
Lock functions which prohibit setting and operation by transmitter trim, and dials are provided.
-
Left-handed support
The left and right installation direction of the wheel section can be reversed.
-
Vibrator built into the grip
The vibrator can be operated at racing timer lap navigation, time-up, and low battery, telemetry alarm.
-
USB port
The transmitter can be used as a game controller by connecting it to a computer with a USB cable. (Some games cannot be used.)
CONTENTS
- 1x T10PX Transmitter
- 1x R404SBS Receiver
- 1x Dry Battery Holder
- Wheel Offset Adapter Two Size (APA) Mounting Screws
- 1x Wheel Adapter (32 deg.)
- 1x Wheel Angle Spacer (5 deg)
- 1x Large Diameter Steering Wheel
- 1x Trigger Guard (Lx1/Rx1)
- 1x Grip Rubber
- 2x Blind Paddle
- 1x Hex Wrench
- 1x Short Manual
DETAILS
10PX Transmitter Super Response Digital Proportional RC System
10PX Transmitter Specs
Wheel System, 10 Channels (F-4G System), 4 Channels with TFHSS-SR system
Transmitting Frequencies:
2.4 GHz band/ -Transmitting RF poweroutput: 100mW EIRP
Protocols:
T-FHSS-SR/T-FHSS/S/F-4G
Power Requirement:
LiPo NLF2F2000B (7.4 V)
LiFe FT2F1700BV2 (6.6 V
Current Drain:
350 mA or less (When the T-FHSS, Vibration off,back lighting on)
Transmitting Antenna:
1/2 dipole
4.3 Inch Backlit Colour TFT Liquid Crystal Touch Panel*
*Whenyou turn on your 10PX, bright dots may appear on your screen display. Your displaycontains an extremely large number of TFT and is manufactured using high-precisiontechnology. Any bright dots that may appear on your display are intrinsic of the TFTmanufacturing technology.

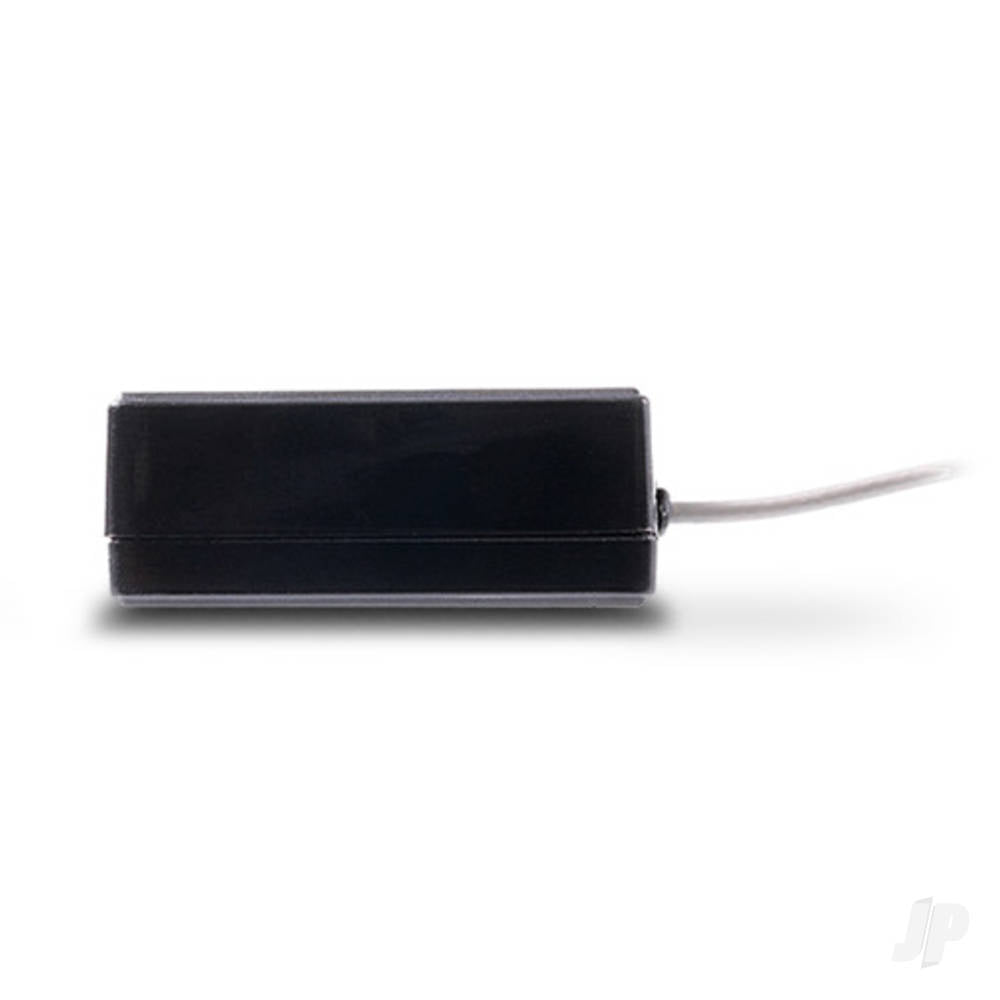

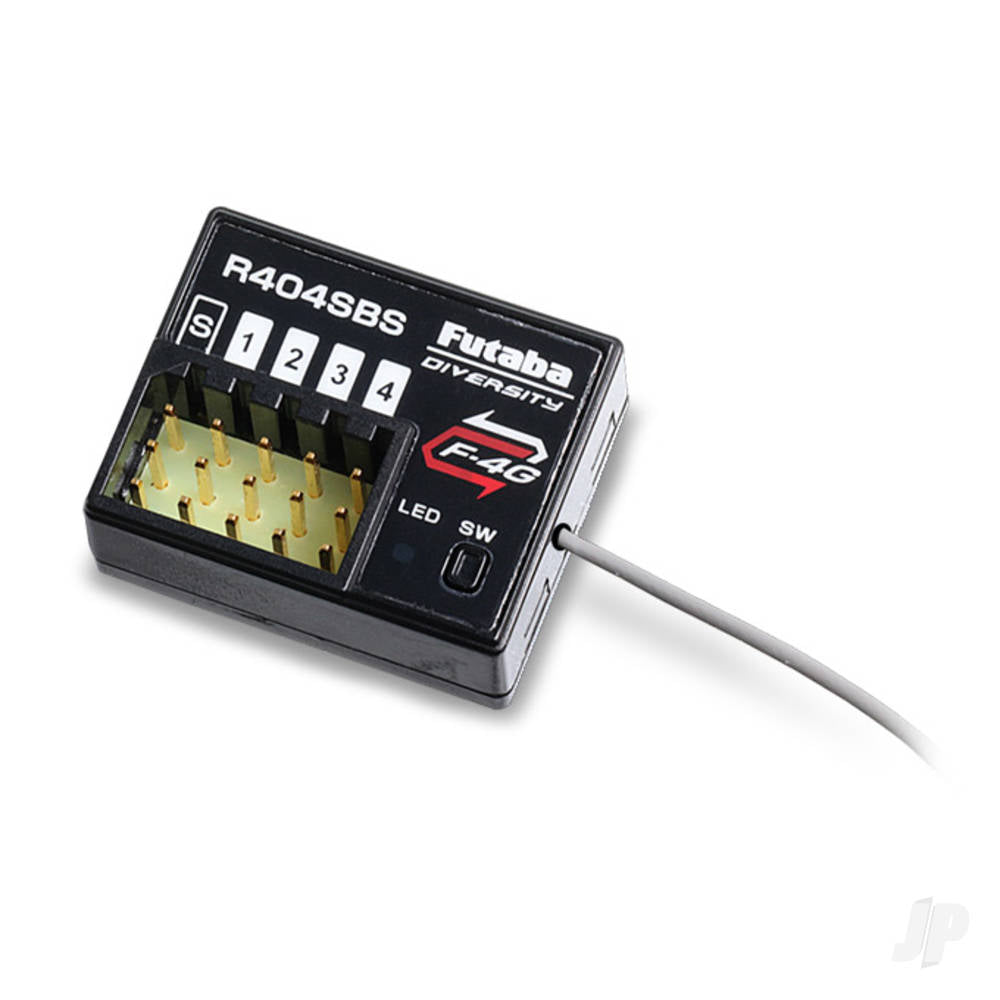

Reciever Specs
R404SBS
F-4G
Size:
1.00 x 0.81 x 0.42 inch
25.5 x 20.7 x 10.6 mm
Weight:
5.7 g
0.2 oz.
Operating Voltage:
DC 3.7 - 8.4V
R404SBS-E
F-4G
Size:
1.00 x 0.81 x 0.42 inch
25.5 x 20.7 x 10.6 mm
Weight:
5.7 g
0.2 oz.
Operating Voltage:
DC 3.7-7.4V
