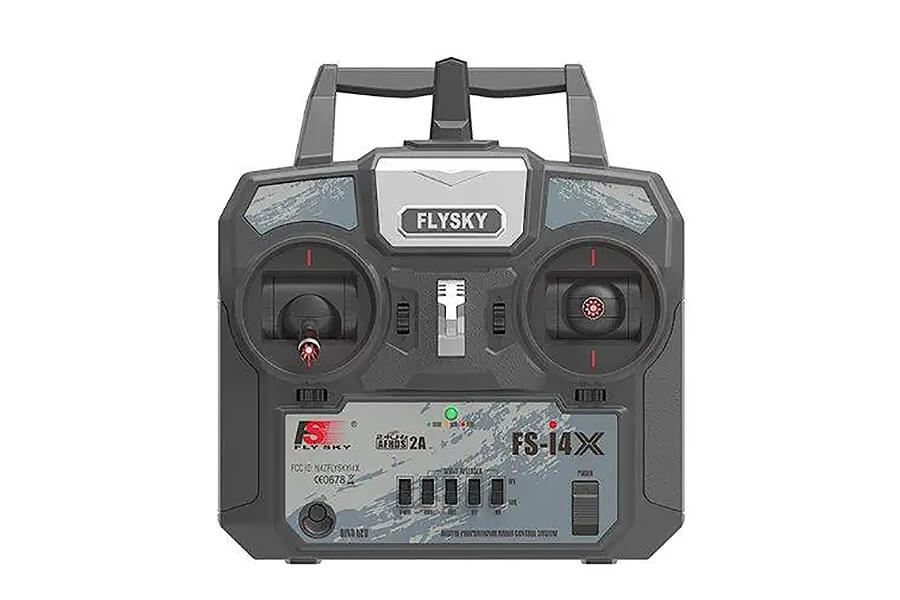

  • SkyFly Flysky Fs-I4X 4Ch 2.4Ghz Radio System W/A6 Receiver Mode 1 FS-I4X-A6M1

    Available for collection and delivery within 7-10 days

    Shipping & Delivery

    On this item shipping is usually 3-5 business days from the date of order confirmation, times may vary depending on product and delivery / collection location.

    SKU: FS-I4X-A6M1
    Vendor: SkyFly

    Features

    • With strong initiative and passive anti-interference ability and V-MIX mix control system,compatible with many models.
    • According to your own needs,you can DIY expansion channel,this item can be expaned to 10CH.
    • Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 140 independent channels.
    • This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
    • Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
    • This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
    • AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
    • AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

    Specifications (Tramsmitter)

    Mode (optional): Mode 1 (Right Hand Throttle)
    Band Range: 2.4055-2.475GHz
    Band Amount: 140
    Channel: 4-10CH
    Model Type: RC Airplane/Glider/Helicopter
    RF Power: <20dBm
    Bandwidth: 500KHz
    2.4GHz System: AFHDS 2A / AFHDS
    Modulation Type: GFSK
    Stick Resolution: 1024
    Low Voltage Warning: <4.2V
    DSC Port: PS2 PPM
    Chargeable: No
    Antenna Length: 26mm *2
    Weight: 335g
    Power: 6V DC 1.5AA*4(Not included)
    Display: LED Indicators
    Size: 174*89*190mm
    Colour: Black
    Certificate: CE0678, FCC

    Specification of Receiver

    Channels: 6
    Model Type: Fixed-Wing/Glider/ Helicopter
    RF Range: 2.4055-2.475GHz
    RF Channel: 140
    RF Receiver Sensitivity: -105dBm
    Bandwidth: 500KHz
    2.4GHz System: AFHDS 2A
    Modulation Type: GFSK
    Power: 4.0-6.5V DC
    Antenna Length: 26mm
    Weight: 13g
    Size: 45*23*9mm
    i-BUS Port: No
    Data Acquisition Port: No
    Colour: Grey (Transparent)
    Certificate: CE0678, FCC

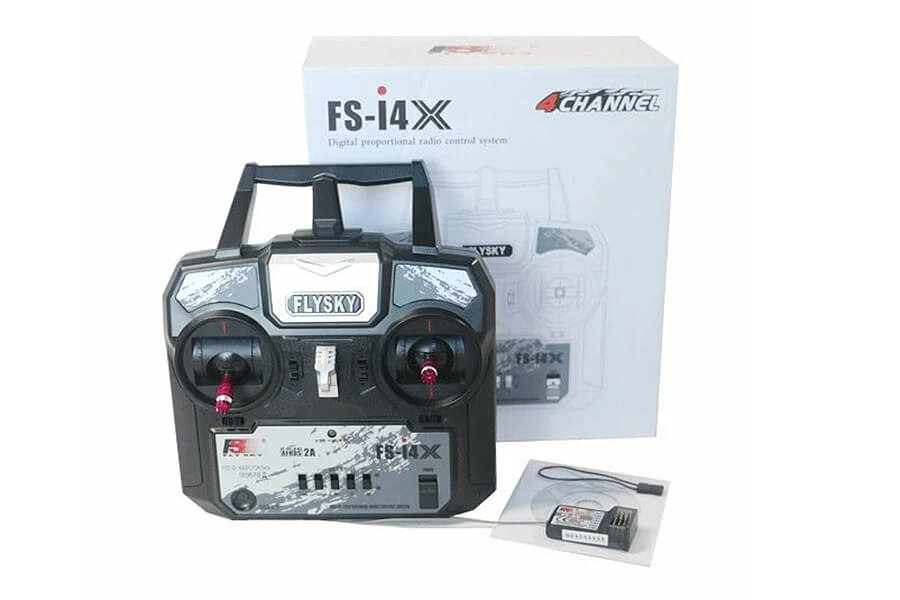

    What's Included

    • 1x Flysky FS-i4X Transmitter
    • 1x Flysky FS-A6 Receiver
